New and Available Econoclave Systems!
ASC Process Systems is the leading autoclave manufacturer in the U.S. and is home to the Econoclave composite bonding autoclave. To meet our customer needs for a faster delivery time, we are building stock Econoclave systems for reduced lead times depending on where we are in the build process.

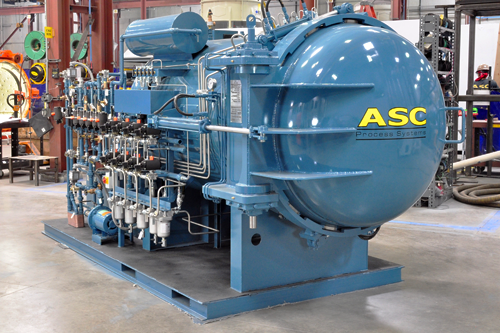

New EC3X5 Econoclave (ASC# 23129) - Scheduled Availability November 2023
This standard model is designed for small autoclave composite part production, laboratory testing, and college/university use. The skid-mounted control system, power system, vacuum system, cooling tank (optional), and other auxiliaries are installed.
- Model Number: EC3X5-150P450F-4S4P12T-VP1-VR-CL3
- Working Diameter: 36" (914mm)
- Working Length: 60" (1524mm)
- Working Max Pressure: 150 psi (10.3 Bar)
- Temperature: 450F (232C)
- Current Location: ASC Valencia, California
- Availability: November 2023
- Codes and Standards: ASME / NB Pressure Vessel certification
- Learn more about this Standard Model: CLICK HERE
New EC3X5HPHT Econoclave - SOLD
This standard model is designed for small autoclave composite part production, laboratory testing, and college/university use. The skid-mounted control system, power system, vacuum system, cooling tank (optional), and other auxiliaries are installed.
- Model Number: EC3X5-200P800F-4S4P12T-VP1-VR-CL3
- Working Diameter: 36" (914mm)
- Working Length: 60" (1524mm)
- Working Max Pressure: 200 psi (13.8 Bar)
- Temperature: 800F (426C)
- Current Location: ASC Valencia, California
- Availability: SOLD
- Codes and Standards: ASME / NB Pressure Vessel certification
- Learn more about this Standard Model: CLICK HERE

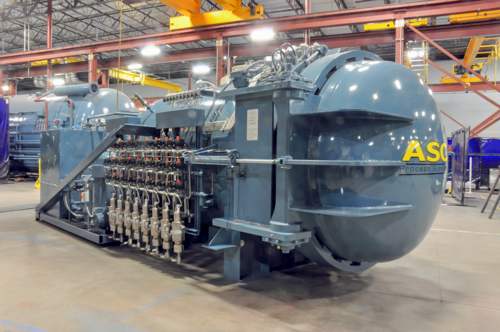

New EC4X8HPHT Econoclave (ASC# 22xxx) - Production scheduled for 2023
This standard model is designed for medium to large-scale autoclave composite part production use. The control system, power system, vacuum system, cooling tank (optional), and other auxiliaries are installed.
- Model Number: EC4X8-200P800F-6S6P12T-VP1-VR-CL3
- Working Diameter: 48"
- Working Length: 96"
- Working Max Pressure: 200 psi (13.8 Bar)
- Temperature: 800F (426C)
- Current Location: ASC Valencia, California
- Availability: Production scheduled for January 2023
- Codes and Standards: ASME / NB Pressure Vessel certification
- Learn more about this Standard Model: CLICK HERE

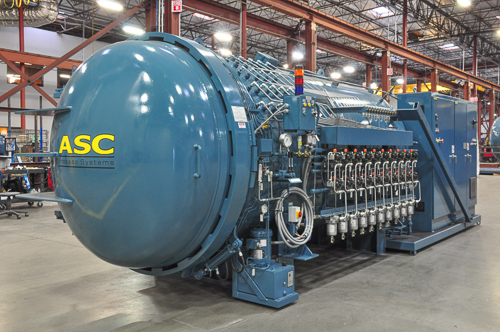

New EC5X12HP Econoclave (ASC# 22XXX) - Production scheduled for 2023
This standard model is designed for medium to large-scale autoclave composite part production use. The control system, power system, vacuum system, cooling tank (optional), and other auxiliaries are installed.
- Model Number: EC5X12-200P450F-8S8P16T-VP1-VR-CL1
- Working Diameter: 60"
- Working Length: 144"
- Working Max Pressure: 200 psi (13.8 Bar)
- Temperature: 450F (232C)
- Current Location: ASC Valencia, California
- Availability: Production scheduled for 2023
- Codes and Standards: ASME / NB Pressure Vessel certification
- Learn more about this Standard Model: CLICK HERE
New EC6X15HP Econoclave (ASC# 22XXX) - Production scheduled for 2023
This standard model is designed for medium to large-scale autoclave composite part production use. The control system, power system, vacuum system, cooling tank (optional), and other auxiliaries are installed.
- Model Number: EC6X15-200P450F-12S12P24T-VP1-VR-CL1
- Working Diameter: 72"
- Working Length: 180"
- Working Max Pressure: 200 psi (13.8 Bar)
- Temperature: 450F (232C)
- Current Location: ASC Valencia, California
- Availability: Production scheduled for 2023
- Codes and Standards: ASME / NB Pressure Vessel certification
- Learn more about this Standard Model: CLICK HERE

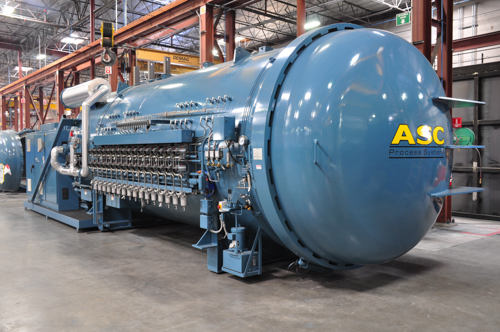

New EC8X10 Econoclave (ASC# 19592) - Build In Progress
This standard model is designed for medium to large-scale autoclave composite part production use. The skid-mounted control system, power system, vacuum system, cooling tank (optional), and other auxiliaries are installed.
- Model Number: EC8X10-150P450F-12S12P24T-VP1-VR-CPCII
- Working Diameter: 96"
- Working Length: 120"
- Working Max Pressure: 150 psi (10.3 Bar)
- Temperature: 450F (232C)
- Current Location: ASC Valencia, California
- Availability: In production, Call for availability
- Codes and Standards: ASME / NB Pressure Vessel certification
New EC10X30HP Econoclave (ASC# 20531) - In production, finish date TBD.
This standard model is designed for large-scale autoclave composite part production. The control system, power system, vacuum system, cooling tank (optional), and other auxiliaries are installed.
- Model Number: EC10X30-200P500F-48S48P96T-VP1-VR-CL1-CPCII-PG-BG3-96PCJ-12SP
- Working Diameter: 120"
- Working Length: 360"
- Working Max Pressure: 200psi (13.8 bar)
- Temperature: 500F (260C)
- Current Location: ASC Valencia, California
- Availability: In production, finish date TBD.
- Codes and Standards: ASME / NB Pressure Vessel certification
- Learn more about this Standard Model: CLICK HERE
New EC10X30SD Econoclave (ASC# 22XXX) - Production scheduled for 2023
This standard model is designed for large-scale autoclave composite part production. The control system, power system, vacuum system, cooling tank (optional), and other auxiliaries are installed.
- Model Number: EC10X30-150P450F-24S24P48T-VP1-VR-CL1
- Working Diameter: 120"
- Working Length: 360"
- Working Max Pressure: 150 psi (10.3 bar)
- Temperature: 450F (232C)
- Current Location: ASC Valencia, California
- Availability: Production scheduled for 2023
- Codes and Standards: ASME / NB Pressure Vessel certification
- Learn more about this Standard Model: CLICK HERE
